    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading

    Ask Lasest Price
    Brand Name : TL
    Model Number : C001
    Supply Ability : 10000 Square Meter/Square Meters per Day
    Price : $0.25/square meters 1000-4999 square meters
    • Product Details
    • Company Profile

    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading

    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading
    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading
    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading
    Item
    ce111
    ce121
    ce131
    ce131b
    ce151
    ce181
    Width(m)
    2.5
    2.5
    2.5
    2
    2.5
    2.5
    Mesh Size(mm)
    (8×6)±1
    (8×6)±1
    (27×27)±3
    (27×27)±3
    (74×74)±5
    (85×85)±5
    Thickness(mm)
    2.9
    3.3
    5.2
    4.8
    5.9
    7.0
    Mass weight per uint(g/㎡)
    445±30
    730±30
    630±30
    630±30
    550±25
    720±30
    Tensile strength(kn/m)
    ≥2.0
    ≥6.0
    ≥5.6
    ≥5.6
    ≥4.8
    ≥5.8
    Product Features
    1.enhance road stability and prevent cracks;
    2.It can bear large impact load;
    3.It can bear large alternating load;
    4.It can reduce the amount of pavement materials and speed up construction.
    Application Scenario
    Geonet used to reinforce the roadbed,so that the granular filler and the grid are locked together to form a stable plane and improve the stability of the roadbed;prevent the subsidence of the filler and the development of reflective cracks,and disperse the vertical load;layer enhancement.It is suitable for river dam protection,coast management,tunnel engineering and laying of breakwater diversion dams.
    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading
    Geonet is made of high-density polyethylene(HDPE)plus anti-ultraviolet additives,
    and has the characteristics of anti-aging and corrosion resistance.Extend the service
    life of highways and railways.Protect water and soil and beautify the environment.
    Effectively prevent collapse,can prevent erosion and soil erosion.
    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading

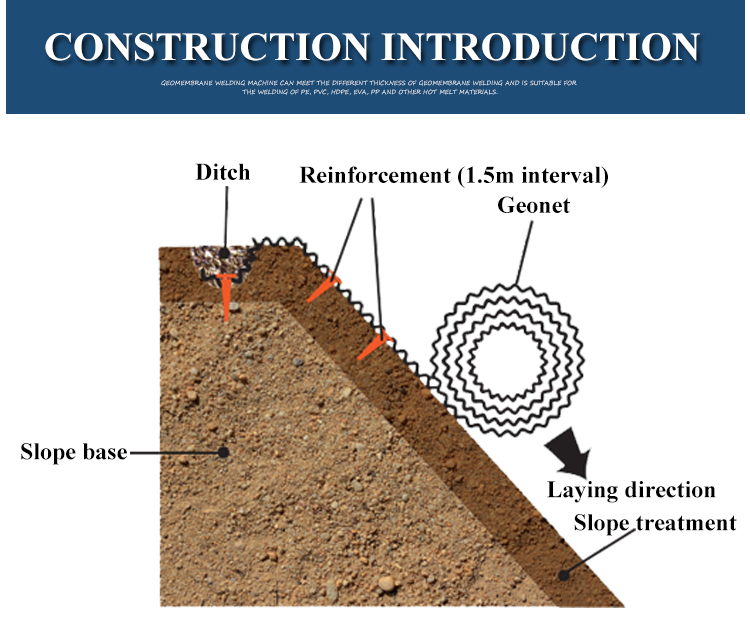

    construction introduction
    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading
    Note the use of geonet on the slope:
    1. Ditches need to be dug at the top of the slope, and 40-80cm of geonet is reserved for fixing in the ditches, and buried for compaction
    2. The geonet should be laid along the slope from top to bottom, and the net should be kept fit with the slope
    3. Fix it with U-shaped nails every 1.5m, and the width of the overlap between the geonet and the geonet is not less than 20cm.
    Factory Tour
    Anti-Ultraviolet HDPE Mesh for Modern Design Soil Reinforcement and Distribute Loading
    FAQ
    Q1: Are you trading company or manufacturer? A:We are officially licensed MANUFACTURER specializing in the research, production and supplying of geosynthetics with 20 years experience Q2: How about the quality of your products? A: We have professional and advanced brand machine production line and quality control center. Each batch of products will be sampled before package and there also has final inspection before shipment Q3: Can you provide sample? A:Yes,we can offer free samples of some items for quality evaluation. Q4: Can you accept small order? A: Yes.Our minimum order quantity is 1000㎡ Q5: Do you accept customized design order? A: Yes.We welcome customized design orders Q6: What is your lead time? A:General within 7-15 days, large order can be negotiated Q7: What's your delivery term? A: We can accept EXW, FOB, CIF etc (follow customers' request) Q8. What is the payment way? A: Online Bank Payment,T/T,L/C,D/P D/A,PayPal,Western Union
